All You Need to Know About the Bosch Solution 6000 Integrated Alarm and Building Access System (Part 1)
ABOUT BOSCH SOLUTION 6000
In its smallest form the Bosch Solution 6000 Alarm System is a 16-zone alarm panel, SCC610, that works with the CP722 Prox Reader Keypad, (Black CP732B and Wi-Fi CP741 Keypads also available), and Intrusion Detectors such as the ISC-BPR2-W12 Bosch Blue Line Gen2 PIR. However, Solution 6000 is capable of much more than being a simple alarm system through its scalable architecture, control and communication options. On this page we outline the key components of the Solution 6000 Alarm and Access System, its capabilities and installer/user benefits, as well as providing downloadable resources for electronic security professionals and their customers.
Alarm and Access System Ideal for Large Homes and Small to Medium Buildings
The Solution 6000 Alarm & Access System is ideal for large houses and small to medium business, commercial, and government sites. It is the panel many security installers go to before requiring to use larger intrusion and access control systems, such as Tecom Challenger and Inner Range Integriti, which are more suitable for very extensive and enterpise wide applications.
 |
SYSTEM CAPABILITIES
Bosch Solution 6000 Alarm Systems provides intrusion detection, wired (IP) and wireless (GSM/GPRS) system communication, back-to-base alarm monitoring functions, building access control and management, and a number of system control options including installer software, site manager software, smart device apps, keypads, smart cards or tokens and keyfob remotes.
The Bosch Solution 6000 Alarm & Access System is scalable to provide a maximum of:
- 144 Programmable Zones and 8 Separate Areas
- 16 Fully Supervised Keypads
- 990 User Codes with Rf Keyfobs
- 16 Access Doors or LAN Readers
- 40 Outputs (37 wired and 3 virtual)
- 60+ Event Types
- 2000 Event History
- 8 External Intelligent Power Modules
Additional Solution 6000 Features and Benefits include:
- Integrated access and alarm with wired and wireless zones
- Full text menu display for easy, intuitive programming and user control
- Smart Card, biometric and external readers, with external keypad options
- Supported communication formats include Conettix IP, GSM, SMS, Email, Contact ID, GPRS, CSV IP, SIA 3+ Text, Voice
- SMS via Bosch GSM & SMS panel control
- Cloud connectivity including push notification, remote control, and monitoring
- Installer and End User software
- Local and Monitoring Centre Reporting
|
“As a seasoned security installer, I still can’t believe what this alarm panel is capable of. Solution 6000 provides great value for money.” |
INSTALLER AND END-USER BENEFITS
|
Benefit |
Comment |
Installer |
End User |
|
Value for money |
Advanced system at a very accessible price |
✔ |
✔ |
|
3 Year Warranty |
Components covered by a 3-year warranty |
✔ |
✔ |
|
Scalable |
Components and users can be added as required. Small and large systems are possible. |
✔ |
✔ |
|
Industry Leading Detectors |
Bosch detectors lead the market in detection rates and extremely low false alarm rates. |
✔ |
✔ |
|
Ease of Installation & Ease of Use |
Bosch 6000 alarm and access systems are easy to install, program and use. |
✔ |
✔ |
|
Integrated Alarm & Access |
One product provides building access control and intrusion protection |
✔ |
✔ |
|
Cloud Connectivity |
Several communication options for alarm control, back-to-base and/or self-monitoring and notifications |
✔ |
✔ |
|
Smart Device Control |
Control and notifications at your fingertips. |
|
✔ |
|
External System Connection |
Optional external connection to the alarm system for updates and maintenance. |
✔ |
|
|
Made in Australia |
Local product. Local support. |
✔ |
✔ |
SOLUTION 6000 COMPONENTS AND ARCHITECTURE
The Solution 6000 Panel architecture allows:
- True High Speed RS485 LAN Bus
- 1.2 km Total Length - Can use RS485 LAN Isolator modules (CM797B) to electrically isolate LAN and external components
- 4 Wire Connection
- Anti Substitution Protection for LAN Modules
- Star, Daisy-chain or combination cabling
No special cables are required for systems with cabling less than 300m in length.
 |
Download System Architecture PDF: Solution 6000 Components and Architecture

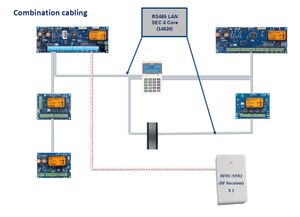

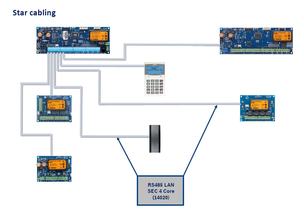

Wiring Options
The Bosch Solution 6000 Alarm and Access System allows star, daisy chain and combination cabling.
 |
 |
 |

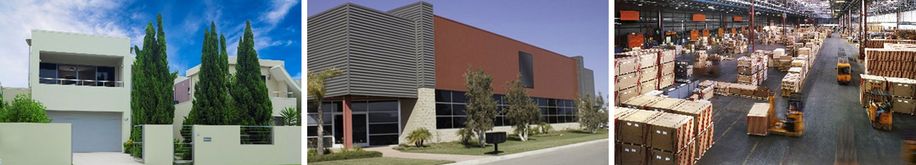

TYPICAL APPLICATIONS AND EXAMPLE SOLUTION 6000 CONFIGURATIONS
Solution 6000 is ideal for any small to medium-sized residential and commercial that require control of no more than 16 doors and/or buildings requiring an alarm system with no more than 144 Zones, 8 separate areas, and 990 user codes.
|
Homes |
Business Units/Shopfronts |
Car Dealerships |
|
Townhouses and Apartments |
Embassies |
Local Government |
|
Department Stores |
Supermarkets |
Small to Medium Buildings |
|
Retail & Fast-Food Franchises |
Gyms |
Pubs and Clubs |
|
Childcare & Learning Centres |
Council Libraries |
Warehouses/Factories |
The Solution 6000 alarm panel allows a LAN length of 300 metres. This distance can be extended to 1,500 metres using LAN Isolator Modules. The alarm and access system can be used in conjunction with lift control and home/apartment/business intercoms/door strikes and door access devices.
|
“Solution 6000 is a very flexible and capable alarm and access system for small to medium sites. We have used it in large homes, retail franchises, supermarkets, business units, factories and warehouses.” |
Examples of Configurations (but not limited to these) for Residential and Business Applications
Warehouse Example Configuration/Wiring
 |

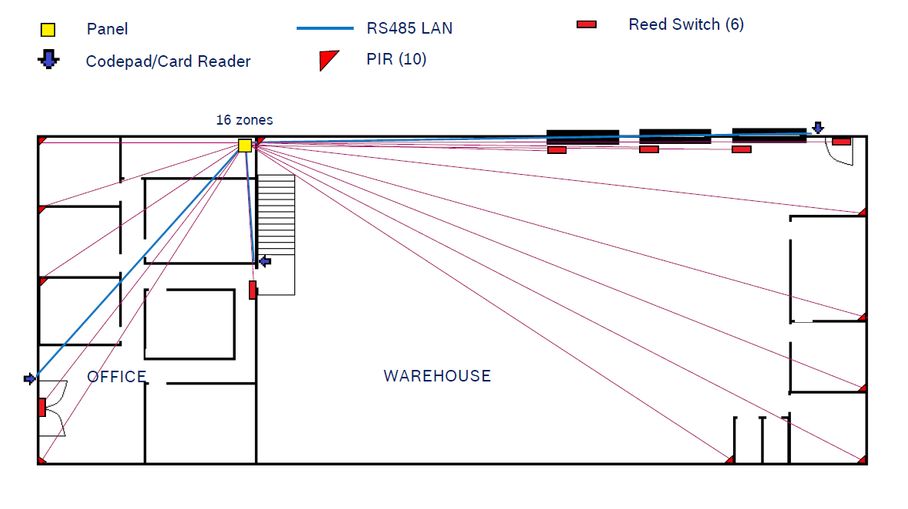

Above: 16 Zones with all devices going direct to the Solution 6000 Panel.
 |

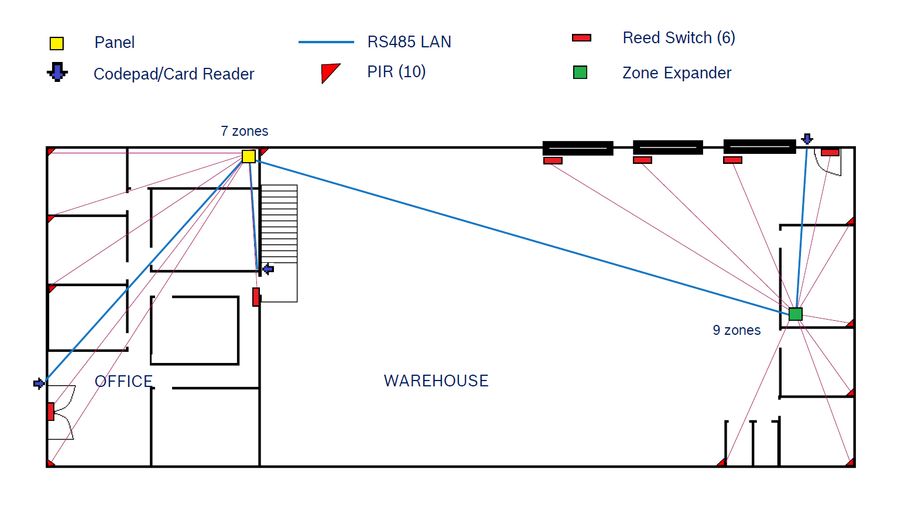

Above: 16 Zones with 9 Zones wired to a Solution 6000 Zone Expander and Lan Cable going back to the Panel.

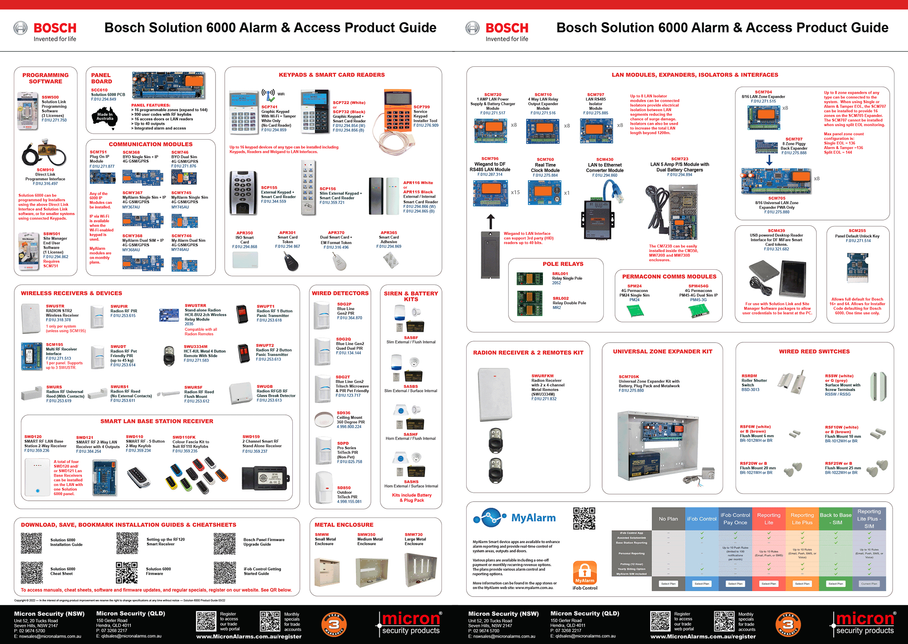

BOSCH SOLUTION 6000 PRODUCT SELECTION GUIDE & ALARM KITS
 |
Download Product Selection Guide PDF: Solution 6000 Product Guide
The above Solution 6000 Product Selection Guide lists the most commonly purchased Solution 6000 prt numbers. See below for Hardwired, Wireless, and Wi-Fi Bosch Solution 6000 Alarm Kits. Available add-on Alarm Accessory Kits including indoor and outdoor sirens, a battery and power supply are also listed below.

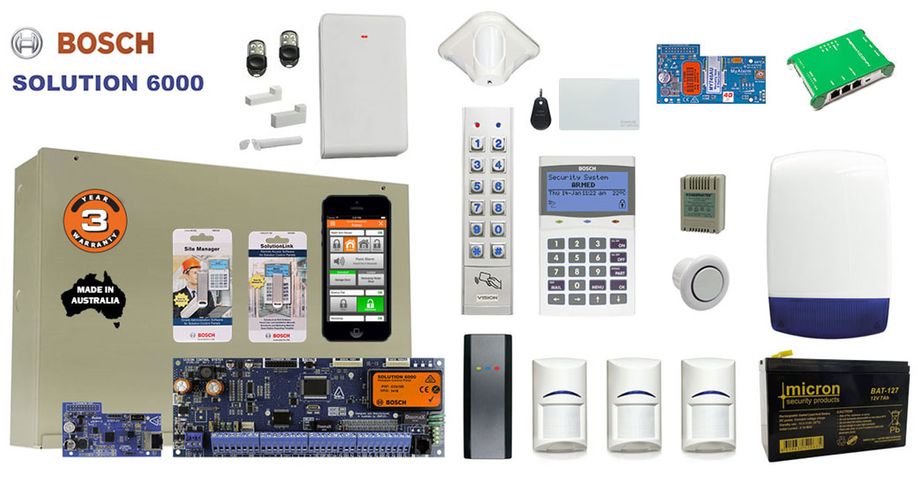

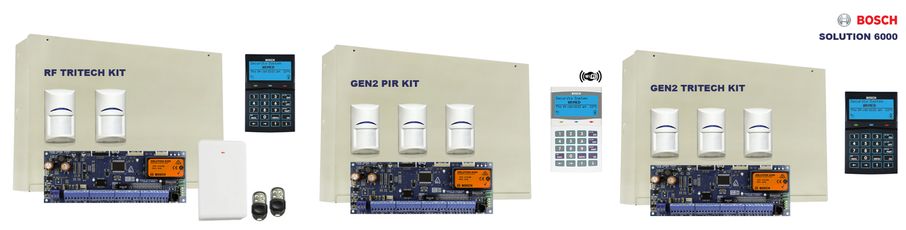

Solution 6000 Alarm Kits
A wide range of alarm kits are available with various panel, keypad and detector combinations. Please note that Alarm Accessory Kits are purchased separately.
 |
|
Bosch Solution 6000 Alarm Kits (Require an Alarm Accessory Kit - Purchased Separately) |
|||||||
|
Alarm Accessory Kits |
|||||||
|
Micron Slim Bell Box Alarm Kit Inc Batt + P/Pack + Flush Screamer |
|||||||
|
Micron Slim Bell Box Alarm Accessory Kit Inc Batt + P/Pack + Surface Screamer |
|||||||
|
Micron Horn Speaker Alarm Accessory Kit Inc Batt + P/Pack + Flush Screamer |
|||||||
|
Micron Horn Speaker Alarm Accessory Kit Inc Batt + P/Pack + Surface Screamer |
 |
 |
 |
|
Bosch Intrusion Detectors Commonly Used with Solution 6000 Panels
|
|
|
|
|
|
|
|
Residential/Small Business |
Larger Business/Specialty/Pro |
Wireless |
||||
|
ISC-PDL1-W18G PRO Series Dual Motion Detector. 18 x 25m Coverage |
||||||
|
ISC-PDL1-WA18G PRO Series Dual Motion Detector Anti Mask. 18 x 24m Coverage |
||||||
|
|
||||||
|
|
||||||
|
|
||||||
|
ISC-PDL1-WA18G PRO Series Dual Motion Detector Anti Mask. 18 x 24m Coverage |
|
|||||
|
|
|
|||||
|
|
|
|||||
Bosch PIR Detector Brackets
|
Wall Mount PIR Bracket |
Ceiling Mount PIR Bracket |
SEE PART 2 FOR MORE INFORMATION ON:
-Solution 6000 Wireless Devices
-Solution 6000 Expander, Communication & Power Modules
-Solution 6000 Software, Manuals, Brochures
